Roof & Wall Cladding



Our Roof and Wall Cladding systems are designed to perform extremely well in the most testing of conditions. Designed for both efficient manufacture, ensuring cost effectiveness passed on to the end user, and for ease of installation, ensuring maximum value for money and minimum downtime.

We have three core products in this range:

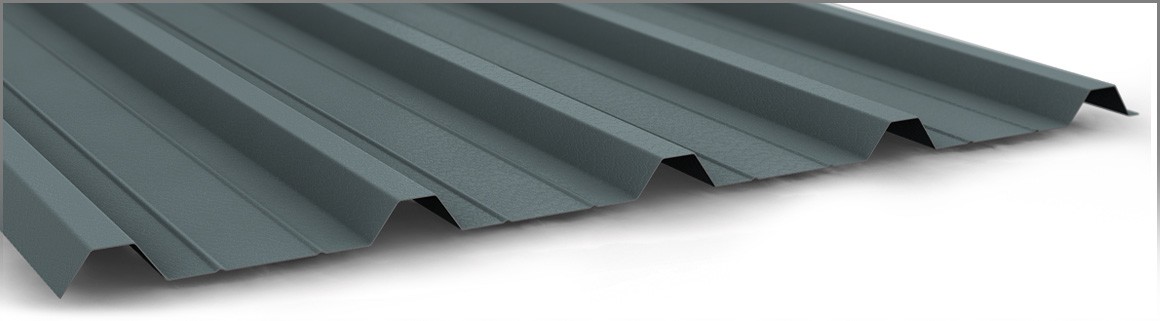

33/1000

Roof and Wall Cladding

The aesthetically pleasing design of the CAF 33/1000 will enhance and complement the features of almost any modern commercial building. This, coupled with high levels of strength and durability make it the perfect choice for both roof and wall solutions.

Exceptional drainage capabilities mean that this product also performs particularly well in roofing applications.

FINISHES

The CAF 33/1000 profile is available in steel in various gauges, finishes and colours.

We are able to crimp curve this profile, either convex or concave down to a one metre radius. Maximum sheet length for curving is 6 metres.

FIRE RATING

CAF 33/1000 profiled sheets comply with BS476: Part 7 and Class O in accordance with current Building Regulations.

The CAF 33/1000 sheets may be incorporated into a “firewall” giving up to 4 hours protection in an “off the boundary” situation.

FIXING

Fixing should commence at the eaves of the roof slope or foot of a wall.

Each sheet should be fixed in the corrugation using 4 fasteners per sheet to purlin or rail.  Side laps should be stitched at 450mm centres and both the side and end laps should be sealed with lap tape or bead depending on application.  If the building is in exposed areas then additional fixings may be required.

Depending on which building regulations need to be achieved then alternative fixing methods may be required.

NOTES

• Deflection Limit – L/250

• Recommended roof pitch 6°

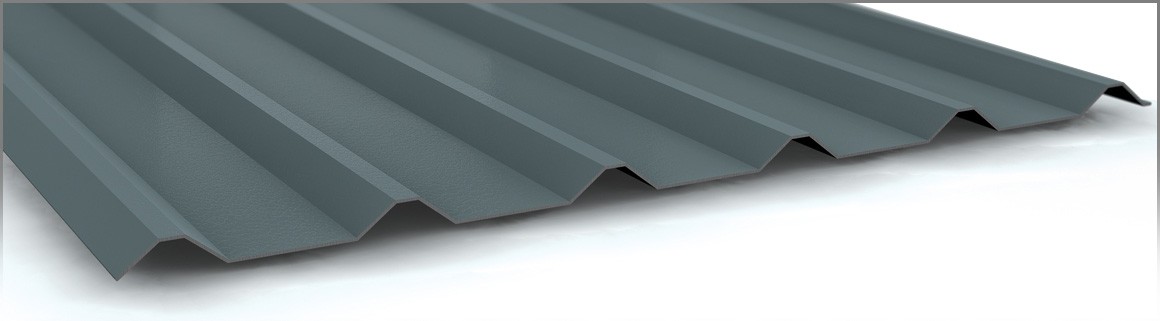

32/200/1000

Roof and Wall Cladding

When the building process requires the use of heavy duty cladding the CAF 32/200/1000 is the ideal solution, combining robust construction with an attractive appearance designed to augment the features of any contemporary architecture. It can be manufactured with or without swages.

The inherent strength and high impact resistance of this product also allow it to be utilised as a high performance liner tray or decking sheet, in particular it is ideal for use with certain standing seam systems.

FINISHES

The CAF 32/200/1000 profile is available in steel in various gauges, finishes and colours.

We are able to crimp curve this profile, either convex or concave down to a one metre radius. Maximum sheet length for curving is 6 metres.

The 32/200/1000 Plain (No Swages) profile is suitable for use with certain standing seam systems.

FIRE RATING

CAF 32/200/1000 profiled sheets comply with BS476: Part 7 and Class O in accordance with current Building Regulations.

The CAF 32/200/1000 sheets may be incorporated into a “firewall” giving up to 4 hours protection in an “off the boundary” situation.

FIXING

Fixing should commence at the eaves of the roof slope or foot of a wall.

Each sheet should be fixed in every corrugation at the eaves, overlap and ridge and then in every other corrugation using 3 fasteners per sheet to purlin or rail. Side laps should be stitched at 450mm centres and both the side and end laps should be sealed with lap tape or bead depending on application.  If the building is in exposed areas then additional fixings may be required.

Depending on which building regulations need to be achieved, alternative fixing methods may be required.

NOTES

• Deflection Limit – L/250

• Recommended roof pitch 6°



Roof and Wall Cladding

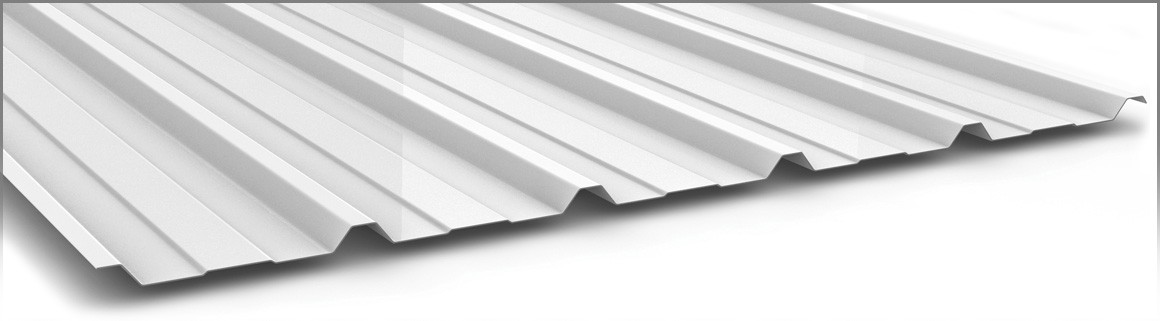

19/1000

Roof and Wall Cladding



Available in 0.4mm and 0.7mm steel the CAF 19/1000 Liner Panel combines strength and stability to provide the best possible solution to any lining requirement.

A bright white polyester coating on the exposed surface of the panel gives the product unique reflective properties that help improve interior lighting conditions and reduce the need for artificial illumination.

For structural purposes we recommend the 0.7mm Liner Panel.

The maximum length for safe on site handling is normally 6000mm.

Applications

When manufactured without swages the 0.7mm liner is suitable for use with certain standing seam systems.

The 0.7mm Liner panel set at 1.8 spans has been tested in accordance with ARC(M)001:2000 Test for Fragility of Roofing Assemblies and achieved Class B. A copy of the Test Report dated 18th November 2006 is available.



Roof and Wall Cladding

The 19/1000 profile without swages is only available in 0.7mm. Please note that when the liner panel is manufactured without swages rippling may occur and there may be slight marking on the cut edges.
